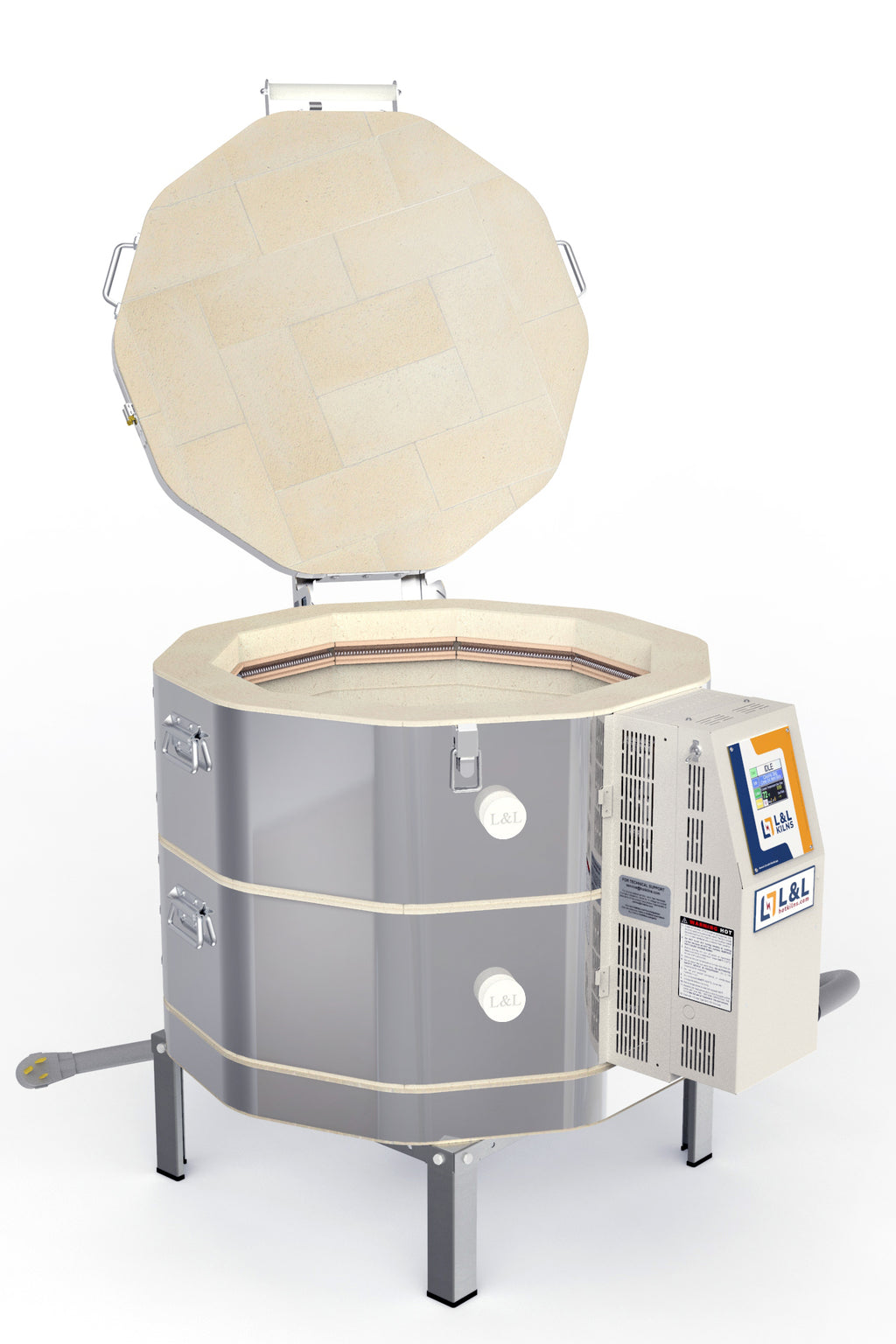

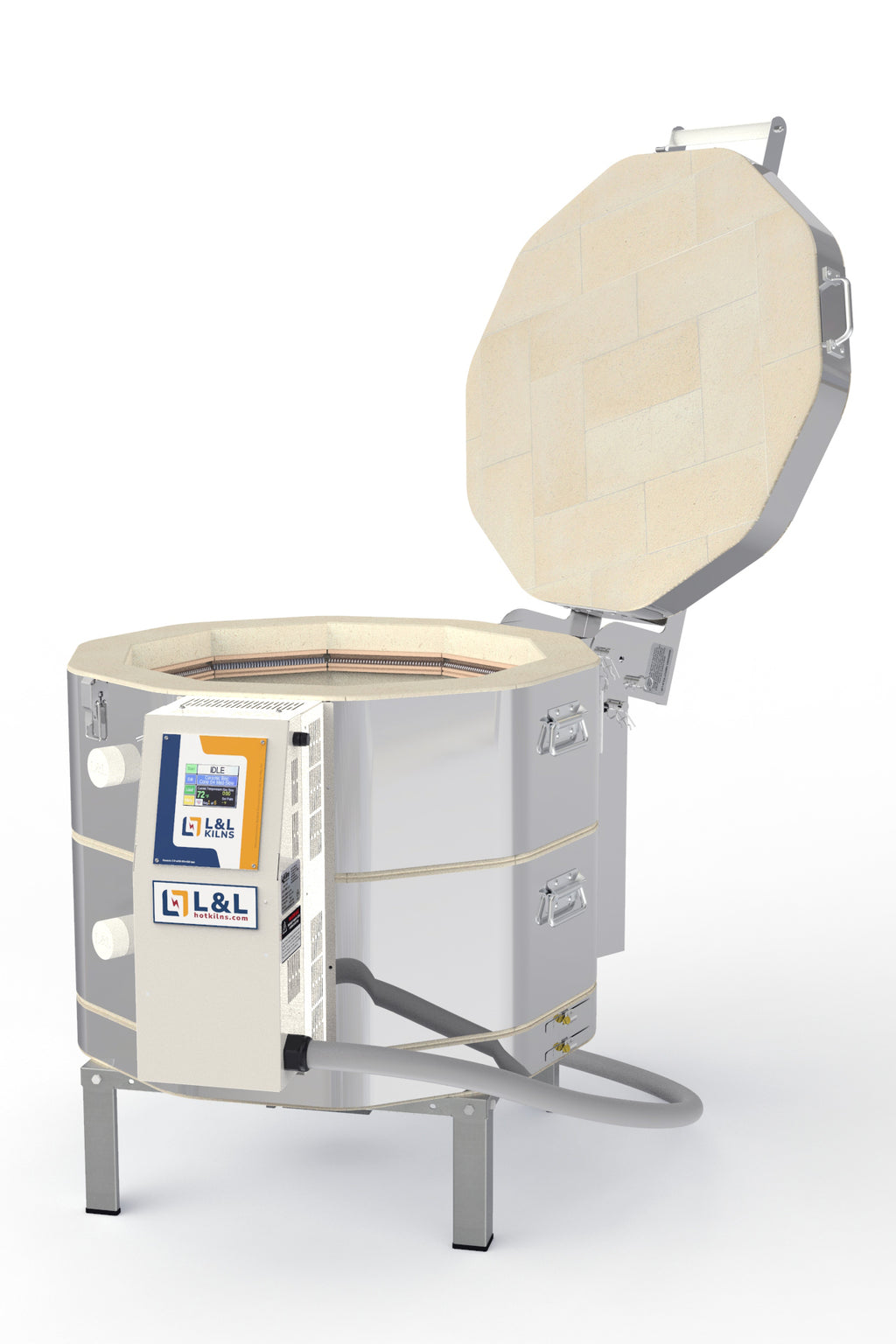

L&L e23S-3 Pottery Kiln
L&L e23S-3 Pottery Kiln
L&L e23S-3 Pottery Kiln is a 4.4 cu. ft. top-loading kiln in L&L's Easy-Fire series, equipped with the Genesis Multi-Zone Touchscreen.
Important ordering information: Kiln voltage and phase must match the installation site. Please verify electrical service before ordering. L&L kilns are not returnable once ordered and released for manufacture. Electrical installation should be completed or verified by a qualified electrician.
Local pickup & delivery: Kilns are available for pickup at Tallahassee Clay Supply. Free local delivery is available in the Tallahassee area. Please contact us to confirm delivery eligibility before ordering. Freight shipping is not available through online checkout at this time.
Key specifications
- Usable volume: 4.4 cu. ft.
- Loading style: Top-Loading
- Interior: 22.3" dia x 18" H
- Exterior: 30" W x 40" D x 59" H
- Approx. kiln weight: 260 lb
- Controller: Genesis Multi-Zone Touchscreen
- Lead time: 10 to 12 Weeks
- Warranty: 3-year limited
Electrical configurations
| Voltage | Phase | Max Cone | Amps | Fuse/Breaker | Connection |
|---|---|---|---|---|---|
| 208 V | Single Phase | 10 | 40 | 50 | NEMA 6-50 cordset |
| 208 V | Three Phase | 10 | 34.6 | 50 | NEMA 15-50 cordset |
| 240 V | Single Phase | 10 | 39.4 | 50 | NEMA 6-50 cordset |
| 240 V | Three Phase | 10 | 34.1 | 50 | NEMA 15-50 cordset |
Furniture
Compatible L&L furniture kit: H-E-K23S/H3. 6 x 20" half-round hollow-core 5/8" shelves; 6 each 1/2", 1", 2", 4", 6", 8" posts; gloves Furniture and venting are not assumed to be included unless specifically shown on your order.
Venting: Vent-Sure option available; 2026 policy says L&L drills vent holes only when vent is ordered with kiln.
Specifications and lead times are based on current L&L published information and can change. Tallahassee Clay Supply will confirm the final model, voltage, phase, options, and current availability before the kiln order is released.
