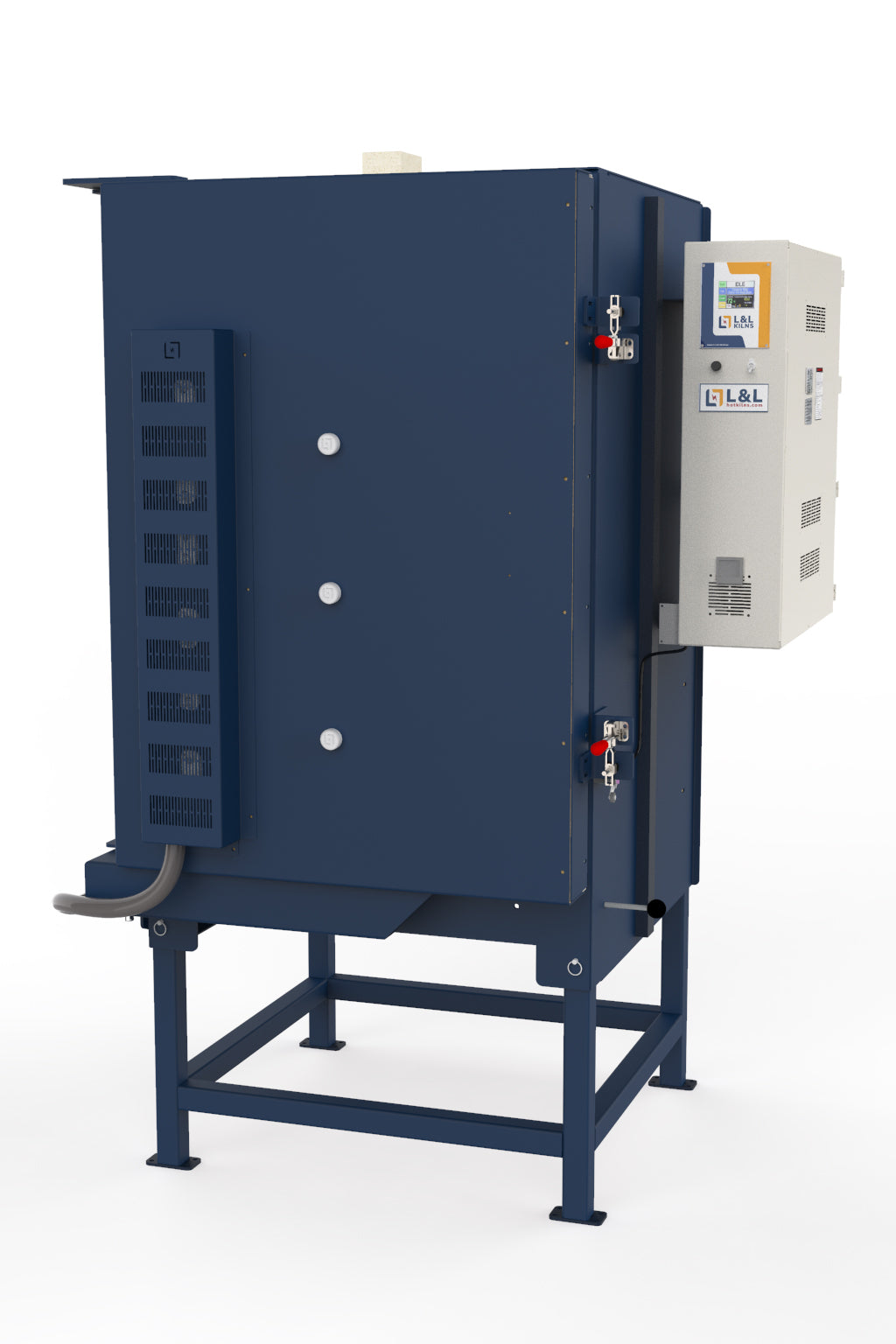

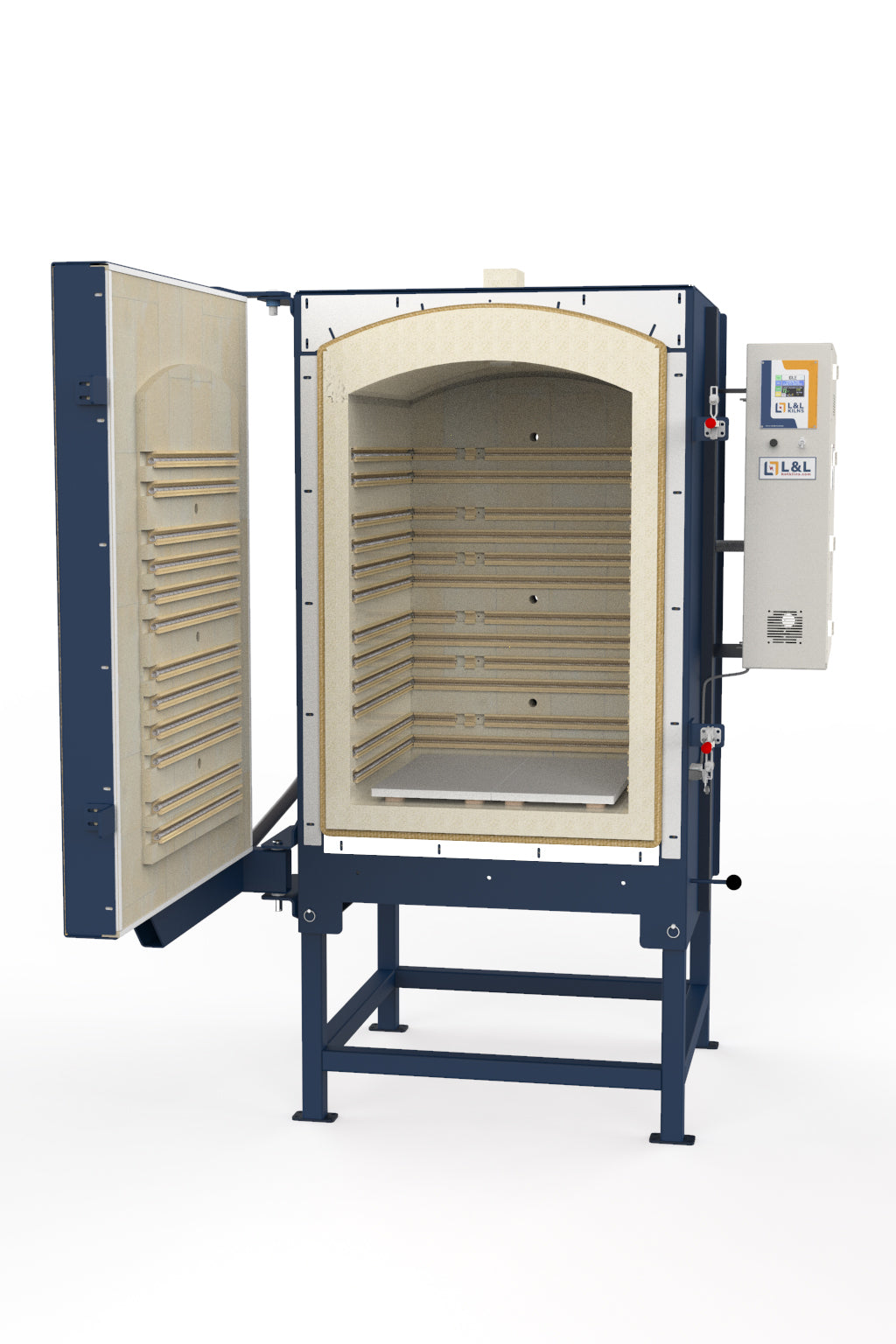

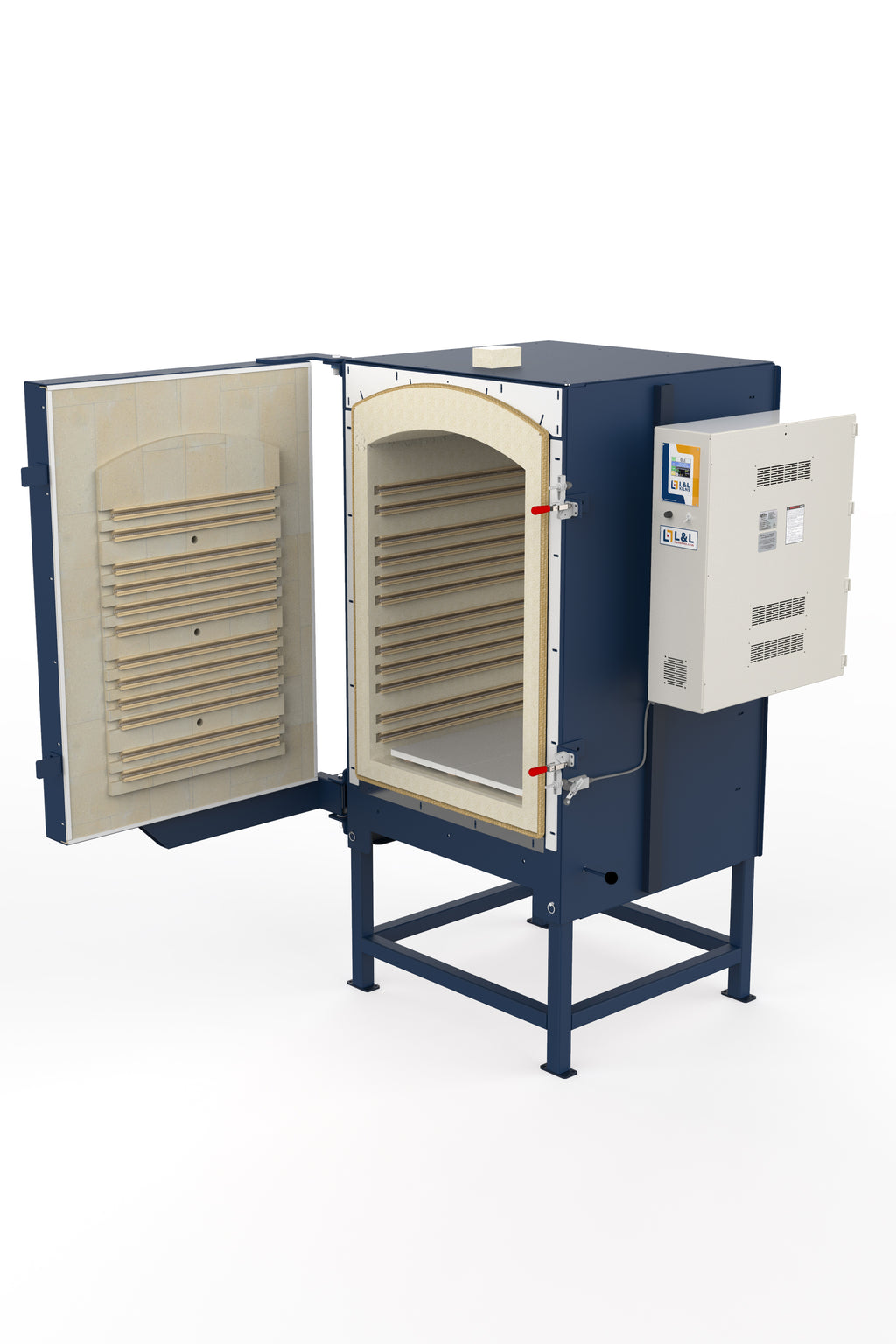

L&L EL2436 Front-Loading Kiln
L&L EL2436 Front-Loading Kiln
L&L EL2436 Front-Loading Kiln is a 12.0 cu. ft. front-loading kiln in L&L's Easy-Load series, equipped with the Genesis Multi-Zone Touchscreen + SSRs.
Important ordering information: Kiln voltage and phase must match the installation site. Please verify electrical service before ordering. L&L kilns are not returnable once ordered and released for manufacture. Electrical installation should be completed or verified by a qualified electrician.
Local pickup & delivery: Kilns are available for pickup at Tallahassee Clay Supply. Free local delivery is available in the Tallahassee area. Please contact us to confirm delivery eligibility before ordering. Freight shipping is not available through online checkout at this time.
Key specifications
- Usable volume: 12.0 cu. ft.
- Loading style: Front-Loading
- Interior: 25" W x 25" D x 36" H
- Exterior: 50" W x 43" D x 78" H
- Approx. kiln weight: 1415 lb
- Controller: Genesis Multi-Zone Touchscreen + SSRs
- Lead time: 18 to 20 Weeks
- Warranty: 2-year commercial limited
Electrical configurations
| Voltage | Phase | Max Cone | Amps | Fuse/Breaker | Connection |
|---|---|---|---|---|---|
| 208 V | Single Phase | 10 | 91.3 | 125 | Direct wire |
| 208 V | Three Phase | 10 | 52.7 | 70 | Direct wire |
| 240 V | Single Phase | 10 | 79.2 | 100 | Direct wire |
| 240 V | Three Phase | 10 | 45.7 | 60 | Direct wire |
| 460-480 V | Three Phase | 10 | 22.9 | 30 | Direct wire |
Furniture
Compatible L&L furniture kit: H-B-2436/00. 8 x 11" x 22" rectangular 3/4" shelves; 12 each 1/2", 1", 2", 4", 6", 8" posts; gloves Furniture and venting are not assumed to be included unless specifically shown on your order.
Venting: Built-in manual vent system; factory options. Do not assume Vent-Sure drilling.
Specifications and lead times are based on current L&L published information and can change. Tallahassee Clay Supply will confirm the final model, voltage, phase, options, and current availability before the kiln order is released.
