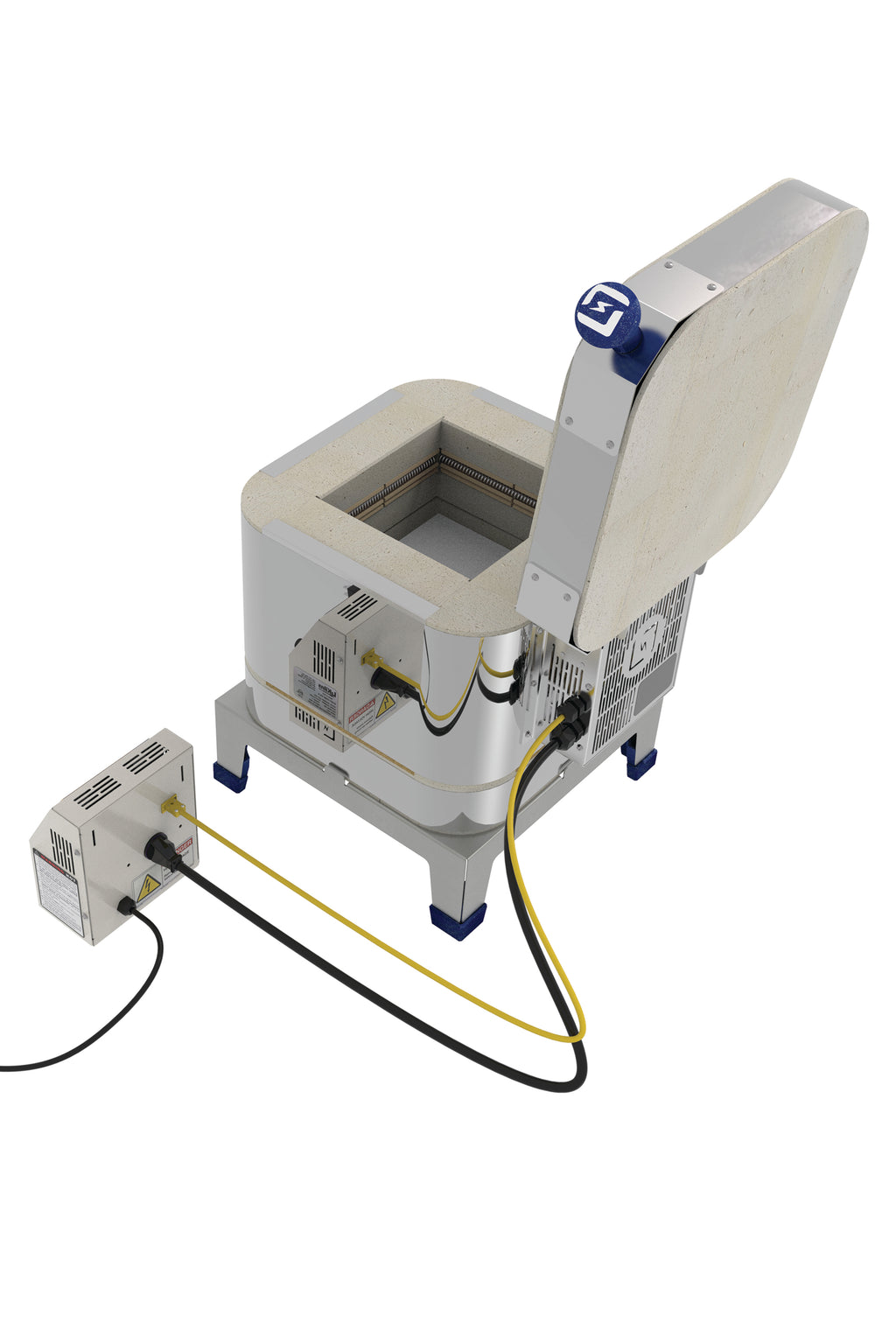

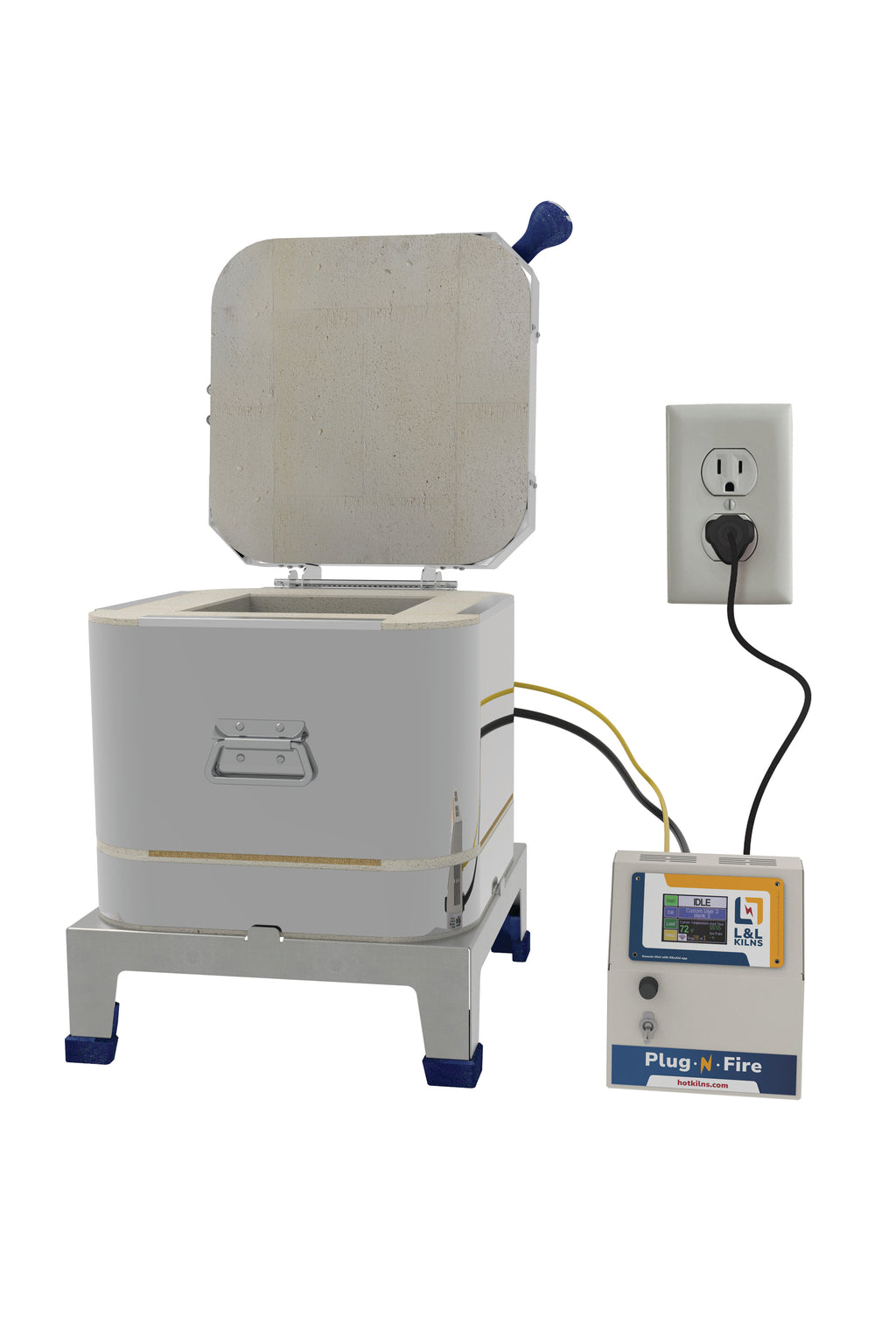

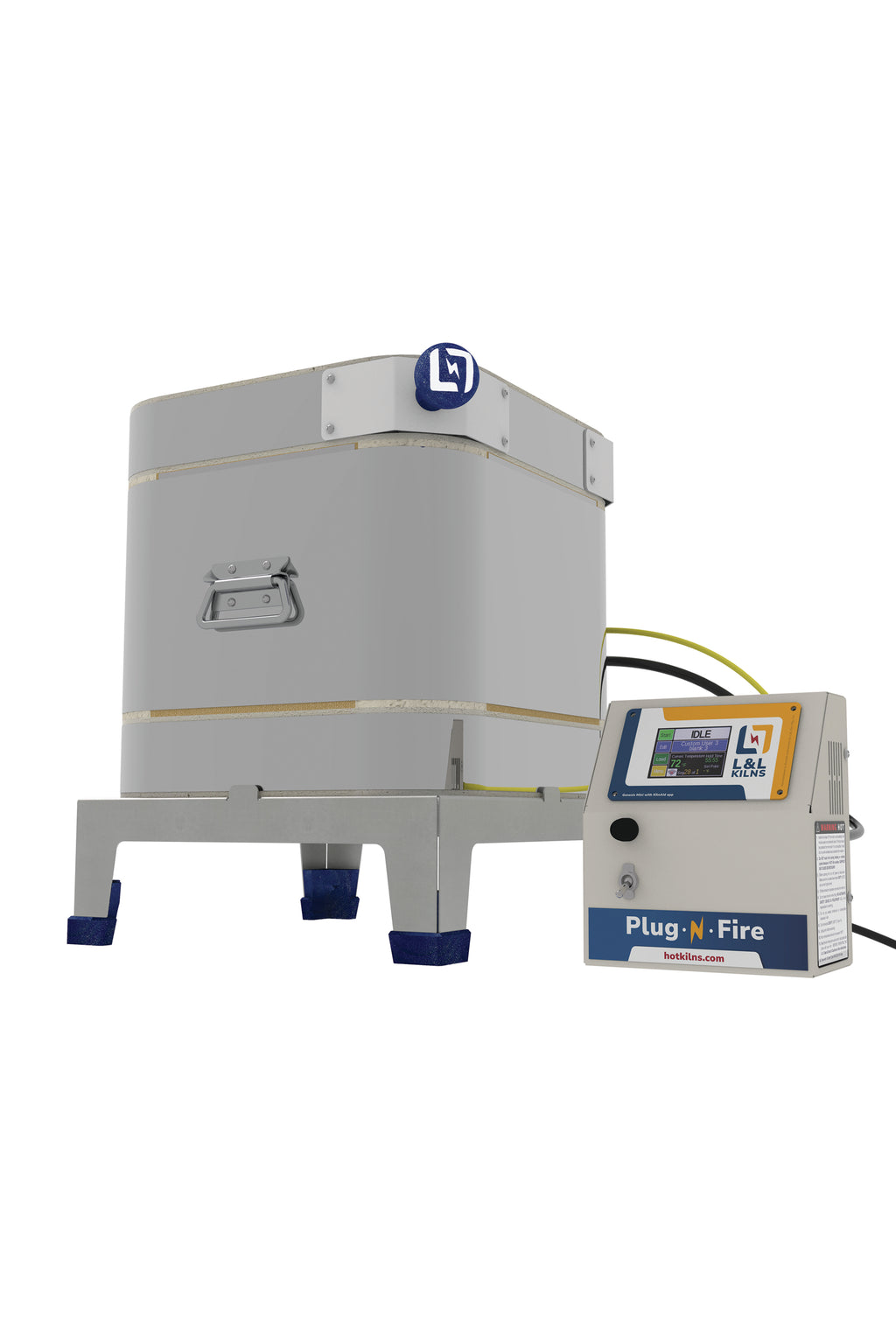

L&L Plug-n-Fire PF8 Kiln
L&L Plug-n-Fire PF8 Kiln
L&L Plug-n-Fire PF8 Kiln is a 0.33 cu. ft. top-loading kiln in L&L's Craft/Test series, equipped with the Genesis Mini Touchscreen.
Important ordering information: Kiln voltage and phase must match the installation site. Please verify electrical service before ordering. L&L kilns are not returnable once ordered and released for manufacture. Electrical installation should be completed or verified by a qualified electrician.
Local pickup & delivery: Kilns are available for pickup at Tallahassee Clay Supply. Free local delivery is available in the Tallahassee area. Please contact us to confirm delivery eligibility before ordering. Freight shipping is not available through online checkout at this time.
Key specifications
- Usable volume: 0.33 cu. ft.
- Loading style: Top-Loading
- Interior: 8" W x 8" D x 9" H
- Exterior: 16" W x 19" D x 20" H
- Approx. kiln weight: 77 lb
- Controller: Genesis Mini Touchscreen
- Lead time: 8 to 10 Weeks
- Warranty: 3-year limited
Electrical configurations
| Voltage | Phase | Max Cone | Amps | Fuse/Breaker | Connection |
|---|---|---|---|---|---|
| 120 V | Single Phase | 10 | 12.5 | 15 | NEMA 5-15P / standard 120V plug |
Included furniture
The L&L Plug-n-Fire PF8 includes the following furniture:
- One 7" x 7" x 3/8" cordierite shelf
- Three 3"-high posts
Optional extras & ventilation
Additional PF8 furniture kits are available separately and are not part of the included set listed above. Please contact Tallahassee Clay Supply to confirm optional accessories and pricing before ordering.
Ventilation: L&L's PF8 installation instructions state that a dedicated vent system is not needed for this model. Operate the kiln in a well-ventilated area and follow L&L's installation and safety instructions. Any additional ventilation equipment is separate from the included furniture.
Specifications and lead times are based on current L&L published information and can change. Tallahassee Clay Supply will confirm the final model, voltage, phase, options, and current availability before the kiln order is released.
