L&L T3445 Electric Kiln
L&L T3445 Electric Kiln

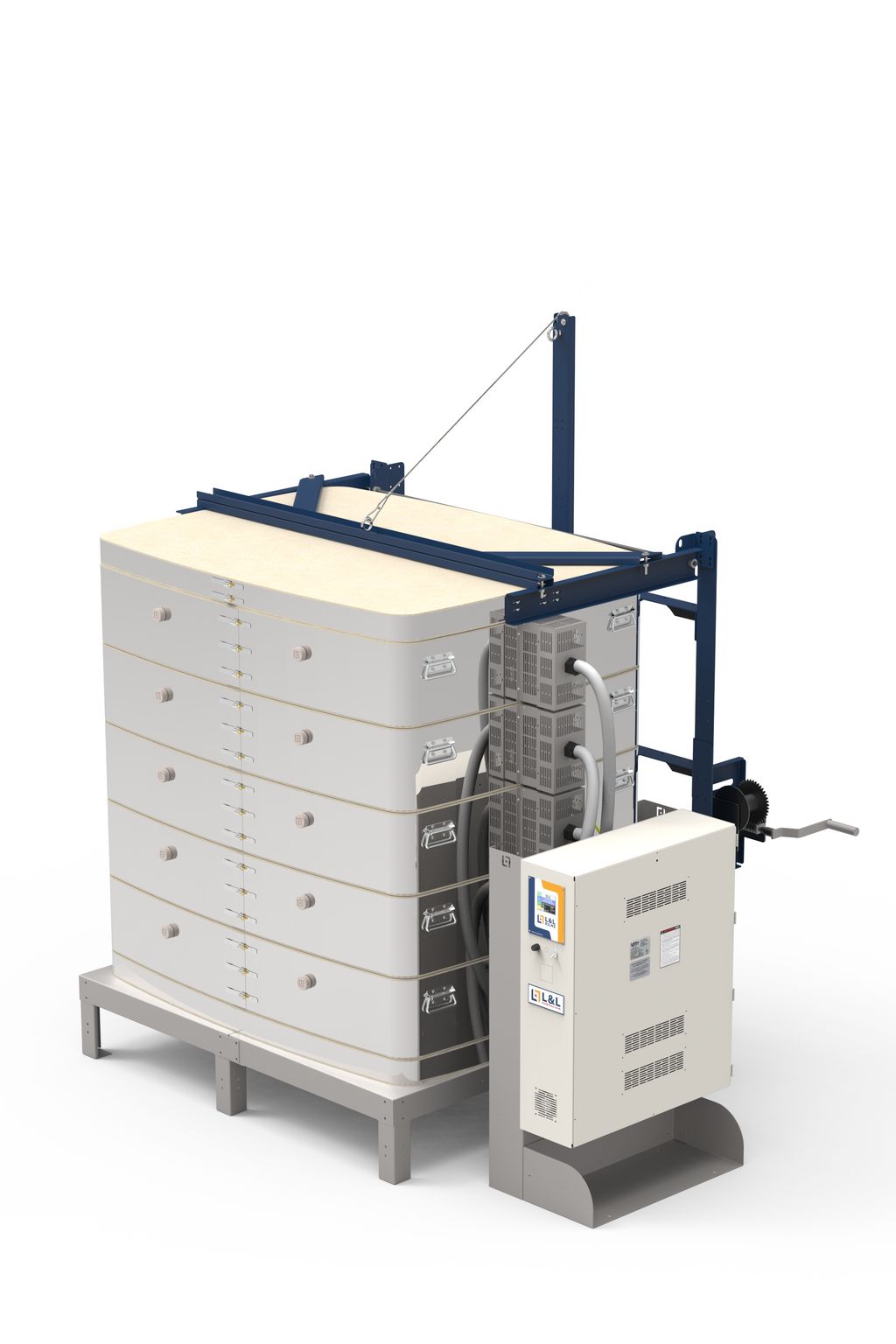

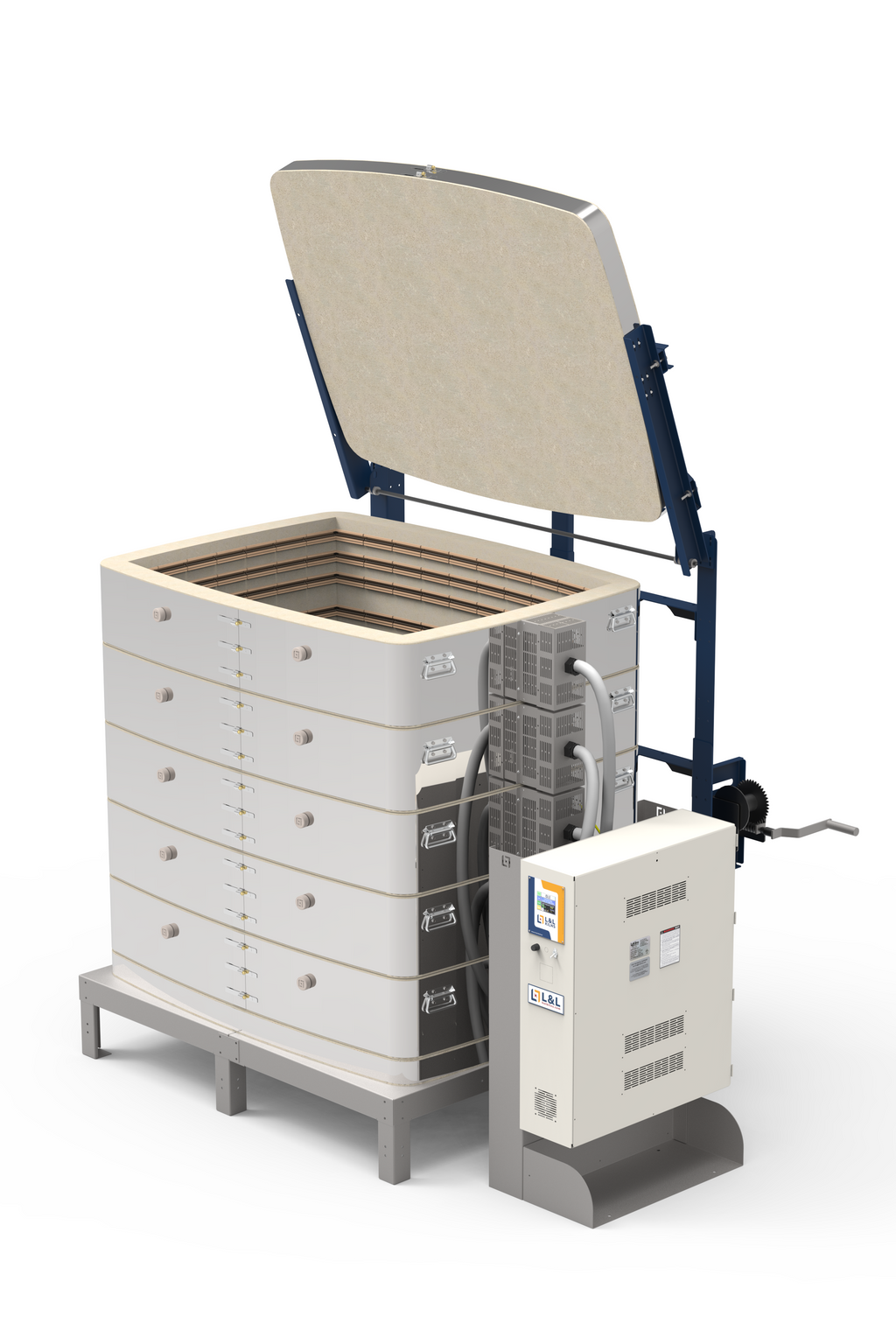

L&L T3445 Electric Kiln is a 34.6 cu. ft. top-loading / pull-apart kiln in L&L's DaVinci series, equipped with the Genesis Multi-Zone Touchscreen.
Important ordering information: Kiln voltage and phase must match the installation site. Please verify electrical service before ordering. L&L kilns are not returnable once ordered and released for manufacture. Electrical installation should be completed or verified by a qualified electrician.
Factory-direct model: L&L requires this model to ship directly from the factory to the customer. Online freight ordering is not enabled at this time. Please contact Tallahassee Clay Supply before ordering this model so we can arrange and quote delivery.
Key specifications
- Usable volume: 34.6 cu. ft.
- Loading style: Top-Loading / Pull-Apart
- Interior: 43.5" W x 30.5" D x 45" H
- Exterior: 76" W x 53" D x 102" H
- Approx. kiln weight: 1305 lb
- Controller: Genesis Multi-Zone Touchscreen
- Lead time: 14 to 16 Weeks
- Warranty: 3-year limited
Electrical configurations
| Voltage | Phase | Max Cone | Amps | Fuse/Breaker | Connection |
|---|---|---|---|---|---|
| 208 V | Single Phase | 10 | 199.8 | 250 | Direct wire |
| 208 V | Three Phase | 10 | 138.4 | 175 | Direct wire |
| 240 V | Single Phase | 10 | 173.2 | 225 | Direct wire |
| 240 V | Three Phase | 10 | 120.0 | 150 | Direct wire |
| 460-480 V | Three Phase | 10 | 50.0 | 70 | Direct wire |
Furniture
Compatible L&L furniture kit: H-T-K545/00. Rectangular-kiln furniture kit; shelves, posts, gloves Furniture and venting are not assumed to be included unless specifically shown on your order.
Venting: Vent-Sure option available; 2026 policy says L&L drills vent holes only when vent is ordered with kiln.
Specifications and lead times are based on current L&L published information and can change. Tallahassee Clay Supply will confirm the final model, voltage, phase, options, and current availability before the kiln order is released.
